Step 04 - Supervisor Pattern for Autonomous Agentic Orchestration

Supervisor Pattern for Autonomous Agentic Orchestration

In the previous step, you created nested workflows that combined sequential, parallel, and conditional patterns to build sophisticated multi-level orchestration.

That design was intentionally concrete. Step 03 introduced separate feedback agents and a straightforward @ParallelAgent workflow so you could clearly see how multiple specialized agents collaborate inside a larger workflow.

In this step, the business problem evolves. We are still building on the same orchestration ideas, but the addition of a third feedback dimension creates a good opportunity to refactor the architecture. Rather than adding yet another nearly identical feedback agent and keeping the duplication, you’ll move to a more flexible pattern: a single parameterized feedback agent executed multiple times in parallel by a supervisor-driven workflow.

This step therefore introduces two ideas at once. First, you’ll learn the Supervisor Pattern, where an AI agent autonomously decides which downstream agents to invoke. Second, you’ll see how to evolve a workflow from multiple concrete agents to a reusable, task-driven design using @ParallelMapperAgent.

New Requirement from Miles of Smiles Management: Intelligent Disposition Decisions

The Miles of Smiles management team has identified a new challenge: they need to make intelligent decisions about vehicle disposition when cars return with severe damage.

The system needs to:

Detect severe damage that might make a car uneconomical to repair
Estimate vehicle value to inform disposition decisions
Decide disposition strategy (SCRAP, SELL, DONATE, or KEEP) based on:
- Car value
- Age of the vehicle
- Severity of damage
- Repair cost estimates
Let an AI supervisor orchestrate the entire decision-making process

What You’ll Learn

In this step, you will:

Understand the Supervisor Pattern and when to use it
Implement a supervisor agent using the @SupervisorAgent annotation
Refactor three similar feedback analyzers into a single parameterized FeedbackAnalysisAgent
Model feedback work as reusable FeedbackTask instances
Use @ParallelMapperAgent to invoke the same agent multiple times in parallel
Use an @Output method to transform raw workflow results into structured data
Build a PricingAgent to estimate vehicle market values
Create a DispositionAgent to make SCRAP/SELL/DONATE/KEEP decisions
See how supervisors provide autonomous, adaptive orchestration

Understanding the Supervisor Pattern

What is a Supervisor Agent?

A supervisor agent is an AI agent that:

Autonomously coordinates other (sub-)agents
Makes runtime decisions about which agents to invoke
Adapts to context using business rules and current conditions
Provides autonomous orchestration without hardcoded routing logic

Supervisor vs. Conditional Workflows

Aspect	Conditional Workflow	Supervisor Agent
Decision Logic	Hardcoded conditions	AI-driven decisions
Flexibility	Fixed rules	Adapts to context
Complexity	Simple boolean checks	Complex reasoning
Maintenance	Update code for changes	Update prompts/context

When to Use Supervisors

Use supervisor agents when you need:

Context-aware routing where decisions are based on multiple factors that are hard to predict
Business rule flexibility that is easier to adjust through instructions than code changes
Complex orchestration with multiple agents that have interdependencies

From Step 03’s Concrete Agents to Step 04’s Parameterized Design

Step 03 deliberately used concrete feedback agents because that made the composition pattern easy to understand. You had one agent for cleaning feedback and one for maintenance feedback, and the workflow simply ran both in parallel. That was the right teaching choice for introducing workflow composition.

Step 04 adds a third perspective: disposition analysis. At that point, the similarity between the feedback agents becomes hard to ignore. Each one reads the same car information and the same feedback sources. The main difference is the instructions it follows and the output it produces.

Instead of creating one more near-duplicate agent, this step refactors the design so the variability becomes explicit data. The analysis logic stays in one place, and the workflow passes in a task object that tells the agent what kind of feedback it is analyzing.

This is a useful architectural progression to understand. You start with concrete, easy-to-read building blocks when learning the model. Once the pattern is familiar, you can refactor toward something more reusable and maintainable.

What is Being Added?

We’re going to enhance our car management system with:

a FleetSupervisorAgent that orchestrates action agents autonomously
a unified FeedbackAnalysisAgent that handles cleaning, maintenance, and disposition analysis
a FeedbackTask model that defines each analysis task
a FeedbackAnalysisWorkflow that runs the same agent multiple times in parallel
a FeedbackAnalysisResults record that holds the three analysis results
a PricingAgent that estimates vehicle market value
a DispositionAgent that decides whether to SCRAP, SELL, DONATE, or KEEP a vehicle
an updated workflow with two distinct phases: parallel analysis followed by supervisor-driven action orchestration

The New Architecture

graph TB
    Start([Car Return]) --> A[CarProcessingWorkflow<br/>Sequential]

    A --> B[Step 1: FeedbackAnalysisWorkflow<br/>Parallel Mapper]
    B --> B1[FeedbackTask.cleaning()]
    B --> B2[FeedbackTask.maintenance()]
    B --> B3[FeedbackTask.disposition()<br/>NEW]
    B1 --> BA[FeedbackAnalysisAgent]
    B2 --> BA
    B3 --> BA
    BA --> BEnd[FeedbackAnalysisResults]

    BEnd --> C[Step 2: FleetSupervisorAgent<br/>Autonomous Orchestration]
    C --> C1{AI Supervisor<br/>Analyzes Results}
    C1 -->|Severe Damage| C2[PricingAgent<br/>Estimate Value]
    C2 --> C3[DispositionAgent<br/>SCRAP/SELL/DONATE/KEEP]
    C1 -->|Repairable| C4[MaintenanceAgent]
    C1 -->|Minor Issues| C5[CleaningAgent]

    C3 --> CEnd[Supervisor Decision]
    C4 --> CEnd
    C5 --> CEnd

    CEnd --> D[Step 3: CarConditionFeedbackAgent<br/>Final Summary]
    D --> End([Updated Car with Status])

    style A fill:#90EE90
    style B fill:#87CEEB
    style C fill:#FFB6C1
    style D fill:#90EE90
    style C1 fill:#FFA07A
    style B3 fill:#FFD700
    style C2 fill:#FFD700
    style C3 fill:#FFD700
    style Start fill:#E8E8E8
    style End fill:#E8E8E8

Hold "Alt" / "Option" to enable pan & zoom

The key innovation is that the system still performs three analyses in parallel, but it no longer needs three separate feedback agent types to do that work. Instead, the workflow builds a list of tasks and executes the same agent once per task.

That gives you a cleaner design with less duplication, while preserving the same behavior and the same parallelism.

Implementing the Supervisor Pattern

Let’s build the new autonomous dispositioning system step by step.

Prerequisites

Before starting:

Completed Step 03 (or have the section-2/step-03 code available)
Application from Step 03 is stopped (Ctrl+C)

Option 1: Continue from Step 03Option 2: Start Fresh from Step 04

If you want to continue building on your Step 03 code, copy the updated UI files from step-04:

Linux / macOSWindows

cd section-2/step-03
cp ../step-04/src/main/resources/META-INF/resources/css/styles.css ./src/main/resources/META-INF/resources/css/styles.css
cp ../step-04/src/main/resources/META-INF/resources/js/app.js ./src/main/resources/META-INF/resources/js/app.js
cp ../step-04/src/main/resources/META-INF/resources/index.html ./src/main/resources/META-INF/resources/index.html

cd section-2\step-03
copy ..\step-04\src\main\resources\META-INF\resources\css\styles.css .\src\main\resources\META-INF\resources\css\styles.css
copy ..\step-04\src\main\resources\META-INF\resources\js\app.js .\src\main\resources\META-INF\resources\js\app.js
copy ..\step-04\src\main\resources\META-INF\resources\index.html .\src\main\resources\META-INF\resources\index.html

Navigate to the complete section-2/step-04 directory:

cd section-2/step-04

Create the Feedback Task Model

The first step in the refactoring is to make the analysis type explicit. Instead of encoding “cleaning”, “maintenance”, or “disposition” in three separate agent interfaces, we represent that variation with a task model.

Create src/main/java/com/carmanagement/model/FeedbackTask.java:

FeedbackTask.java

package com.carmanagement.model;

/**
 * Record representing a feedback analysis task with its configuration.
 * Contains the type of feedback and system instructions for the analysis.
 */
public record FeedbackTask(
        FeedbackType feedbackType,
        String systemInstructions) {

    /**
     * Factory method for creating a cleaning feedback task.
     */
    public static FeedbackTask cleaning() {
        return new FeedbackTask(
                FeedbackType.CLEANING,
                """
                You are a cleaning analyzer for a car rental company. Your job is to determine if a car needs cleaning based on feedback.
                Analyze the feedback and car information to decide if a cleaning is needed.
                If the feedback mentions dirt, mud, stains, or anything that suggests the car is dirty, recommend a cleaning.
                Be specific about what type of cleaning is needed (exterior, interior, detailing, waxing).
                If no interior or exterior car cleaning services are needed based on the feedback, respond with "CLEANING_NOT_REQUIRED".
                Include the reason for your choice but keep your response short.
                """
        );
    }

    /**
     * Factory method for creating a maintenance feedback task.
     */
    public static FeedbackTask maintenance() {
        return new FeedbackTask(
                FeedbackType.MAINTENANCE,
                """
                You are a car maintenance analyzer for a car rental company. Your job is to determine if a car needs maintenance based on feedback.
                Analyze the feedback and car information to decide if maintenance is needed.
                If the feedback mentions mechanical issues, strange noises, performance problems, significant body damage or anything that suggests
                the car needs maintenance, recommend appropriate maintenance.
                Be specific about what type of maintenance is needed (oil change, tire rotation, brake service, engine service, transmission service, body work).
                If no service of any kind, repairs or maintenance are needed, respond with "MAINTENANCE_NOT_REQUIRED".
                Include the reason for your choice but keep your response short.
                """
        );
    }

    /**
     * Factory method for creating a disposition feedback task.
     */
    public static FeedbackTask disposition() {
        return new FeedbackTask(
                FeedbackType.DISPOSITION,
                """
                You are a disposition analyzer for a car rental company. Your job is to determine if a car should be considered for disposition (removal from fleet).

                Analyze the feedback for SEVERE issues that would make the car uneconomical to keep:
                - Major accidents: "wrecked", "totaled", "destroyed", "crashed", "collision"
                - Severe damage: "frame damage", "structural damage", "major damage"
                - Safety concerns: "unsafe", "not drivable", "inoperable", "dangerous"
                - Catastrophic mechanical failure: "engine blown", "transmission failed", "major mechanical failure"

                If you detect ANY of these severe issues, respond with:
                "DISPOSITION_REQUIRED: [brief description of the severe issue]"

                If the car has only minor or moderate issues that can be repaired, respond with:
                "DISPOSITION_NOT_REQUIRED"

                Keep your response concise.
                """
        );
    }
}

Each factory method returns a configured FeedbackTask with two important pieces of data:

the feedback type (for identification and debugging)
the system instructions to use for that analysis

This design keeps the agent generic and moves the task-specific behavior into data. If you ever want to add another feedback dimension later, you can usually start by adding another task factory rather than introducing another near-identical agent.

Create the Unified FeedbackAnalysisAgent

Now create the single feedback analyzer that can handle any of those tasks.

In src/main/java/com/carmanagement/agentic/agents, create FeedbackAnalysisAgent.java:

FeedbackAnalysisAgent.java

package com.carmanagement.agentic.agents;

import com.carmanagement.model.CarInfo;
import com.carmanagement.model.FeedbackTask;
import dev.langchain4j.agentic.Agent;
import dev.langchain4j.service.SystemMessage;
import dev.langchain4j.service.UserMessage;

/**
 * Unified agent that analyzes feedback based on the provided task configuration.
 * This agent is parameterized to handle cleaning, maintenance, and disposition analysis.
 */
public interface FeedbackAnalysisAgent {

    @SystemMessage("{task.systemInstructions}")
    @UserMessage("""
        Car Information:
        Make: {carInfo.make}
        Model: {carInfo.model}
        Year: {carInfo.year}
        Previous Condition: {carInfo.condition}

        Feedback: {feedback}
        """)
    @Agent(description = "Feedback analyzer. Using feedback, determines if action is needed based on task type.",
            outputKey = "feedbackAnalysis")
    String analyzeFeedback(
            FeedbackTask task,
            CarInfo carInfo,
            Integer carNumber,
            String feedback);
}

The key detail here is the system message. Instead of hardcoding the instructions in the agent itself, the agent uses {task.systemInstructions}. That means the same agent can behave like a cleaning analyzer, a maintenance analyzer, or a disposition analyzer depending on the FeedbackTask that was passed in.

This is the core of the refactoring: one agent, multiple task configurations.

Create the FeedbackAnalysisResults Record

Once the parallel analysis is complete, we want to pass the results around as structured data rather than as a raw list of strings.

Create src/main/java/com/carmanagement/model/FeedbackAnalysisResults.java:

FeedbackAnalysisResults.java

package com.carmanagement.model;

/**
 * Record containing the three feedback analysis results.
 * These are the outputs from the parallel feedback analysis workflow.
 */
public record FeedbackAnalysisResults(
        String cleaningAnalysis,
        String maintenanceAnalysis,
        String dispositionAnalysis
) {
}

This record gives the rest of the workflow a stable, readable contract. Instead of dealing with array positions or ad hoc keys, later components can call cleaningAnalysis(), maintenanceAnalysis(), and dispositionAnalysis() directly.

Create the PricingAgent

The Miles & Smiles management has decided they feel comfortable using AI to determine the value of their cars to make further decisions on whether to keep or dispose the car. A wise decision? That remains to be seen 😉.

Either way, let’s create the agent. We’ll add some prompt engineering in the system message to guide the model on how to estimate value based on the brand, its state, and its age. The agent will be invoked by the supervisor when pricing is needed.

In src/main/java/com/carmanagement/agentic/agents, create PricingAgent.java:

PricingAgent.java

package com.carmanagement.agentic.agents;

import dev.langchain4j.agentic.Agent;
import dev.langchain4j.service.SystemMessage;
import dev.langchain4j.service.UserMessage;

/**
 * Agent that estimates the market value of a vehicle.
 * Used by the supervisor to make disposition decisions.
 */
public interface PricingAgent {

    @SystemMessage("""
        You are a vehicle pricing specialist with expertise in market valuations.

        Today is {current_date}. Use this to calculate the current year and vehicle age.

        Use these pricing guidelines:

        Brand Base Values (new current-year models):
        - Luxury brands (Mercedes-Benz, BMW, Audi): $50,000-$70,000
        - Premium trucks (Ford F-150): $45,000-$60,000
        - Mainstream brands (Toyota, Honda, Chevrolet): $28,000-$42,000
        - Economy brands (Nissan): $22,000-$35,000

        Depreciation (calculate age as: current year - vehicle year):
        - Age 1 year (nearly new): -12% from base value
        - Age 2 years: -15% additional (27% total depreciation)
        - Age 3 years: -12% additional (39% total depreciation)
        - Age 4 years: -10% additional (49% total depreciation)
        - Age 5+ years: -8% per additional year

        Condition Adjustments (apply after depreciation):
        - Excellent/Like new: +5% to depreciated value
        - Good/Recently serviced: No adjustment
        - Fair/Minor issues: -10% from depreciated value
        - Poor/Needs work: -20% from depreciated value

        Provide:
        1. Estimated market value (single dollar amount with comma separator)
        2. Brief justification (2-3 sentences explaining age, condition, and brand factors)

        Format your response as:
        Estimated Value: $XX,XXX
        Justification: [Your reasoning including vehicle age]
        """)
    @UserMessage("""
        Estimate the current market value of this vehicle:
        - Make: {carMake}
        - Model: {carModel}
        - Year: {carYear}
        - Condition: {carCondition}
        """)
    @Agent(
        outputKey = "carValue",
        description = "Pricing specialist that estimates vehicle market value based on make, model, year, and condition"
    )
    String estimateValue(String carMake, String carModel, Integer carYear, String carCondition);
}

Create a DispositionAgent

Management also feels comfortable letting an AI model decide whether to SCRAP, SELL, DONATE, or KEEP the vehicle based on repair economics.

Create an agent that makes disposition decisions based on the pricing outcome as well as the car’s age and condition.

In src/main/java/com/carmanagement/agentic/agents, create DispositionAgent.java:

DispositionAgent.java

package com.carmanagement.agentic.agents;

import dev.langchain4j.agentic.Agent;
import dev.langchain4j.service.SystemMessage;
import dev.langchain4j.service.UserMessage;

/**
 * Agent that determines how to dispose of a car based on value, condition, and damage.
 */
public interface DispositionAgent {

    @SystemMessage("""
        You are a car disposition specialist for a car rental company.
        Your job is to determine the best disposition action based on the car's value, condition, age, and damage.

        Disposition Options:
        - SCRAP: Car is beyond economical repair or has severe safety concerns
        - SELL: Car has value but is aging out of the fleet or has moderate damage
        - DONATE: Car has minimal value but could serve a charitable purpose
        - KEEP: Car is worth keeping in the fleet

        Decision Criteria:
        - If estimated repair cost > 50% of car value: Consider SCRAP or SELL
        - If car is over 5 years old with significant damage: SCRAP
        - If car is 3-5 years old in fair condition: SELL
        - If car has low value (<$5,000) but functional: DONATE
        - If car is valuable and damage is minor: KEEP

        Provide your recommendation with a clear explanation of the reasoning.
        """)
    @UserMessage("""
        Determine the disposition for this vehicle:
        - Make: {carMake}
        - Model: {carModel}
        - Year: {carYear}
        - Car Number: {carNumber}
        - Current Condition: {carCondition}
        - Estimated Value: {carValue}
        - Damage/Feedback: {feedback}

        Provide your disposition recommendation (SCRAP/SELL/DONATE/KEEP) and explanation.
        """)
    @Agent(outputKey = "dispositionAction", description = "Car disposition specialist. Determines how to dispose of a car based on value and condition.")
    String processDisposition(
            String carMake,
            String carModel,
            Integer carYear,
            Integer carNumber,
            String carCondition,
            String carValue,
            String feedback);
}

Create the FleetSupervisorAgent

Now create the supervisor agent that orchestrates everything.

What matters most here is making the prompt as clear as possible about the workflow and the agents available to it. The more explicit you are, the better the supervisor can reason about which action agents to invoke.

In src/main/java/com/carmanagement/agentic/agents, create FleetSupervisorAgent.java:

FleetSupervisorAgent.java

package com.carmanagement.agentic.agents;

import com.carmanagement.model.CarInfo;
import com.carmanagement.model.FeedbackAnalysisResults;
import dev.langchain4j.agentic.declarative.SupervisorAgent;
import dev.langchain4j.agentic.declarative.SupervisorRequest;

/**
 * Supervisor agent that orchestrates the entire car processing workflow.
 * Coordinates action agents based on analysis results of the car condition.
 */
public interface FleetSupervisorAgent {

    /**
     * Main method to coordinate car processing based on feedback.
     * This is the entry point for the supervisor agent.
     */
    @SupervisorAgent(
            outputKey = "supervisorDecision",
            subAgents = {
                    PricingAgent.class,
                    DispositionAgent.class,
                    MaintenanceAgent.class,
                    CleaningAgent.class
            }
    )
    String superviseCarProcessing(
            CarInfo carInfo,
            Integer carNumber,
            FeedbackAnalysisResults feedbackAnalysisResults
    );

    /**
     * Generates the supervisor request prompt based on feedback analysis results.
     * This method examines the disposition analysis to determine if the car requires
     * disposition (removal from fleet) and constructs appropriate instructions for
     * the supervisor agent to coordinate the necessary action agents.
     *
     * @param carMake The make of the car
     * @param carModel The model of the car
     * @param carYear The year of the car
     * @param carNumber The car's identification number
     * @param carCondition The current condition description
     * @param feedbackAnalysisResults The results from parallel feedback analysis
     * @return A formatted prompt instructing the supervisor which agents to invoke
     */
    @SupervisorRequest
    static String request(
            CarInfo carInfo,
            Integer carNumber,
            FeedbackAnalysisResults feedbackAnalysisResults
    ) {
        boolean dispositionRequired = feedbackAnalysisResults.dispositionAnalysis() != null &&
                feedbackAnalysisResults.dispositionAnalysis().toUpperCase().contains("DISPOSITION_REQUIRED");

        String noDispositionMessage = """
               No disposition has been requested.

                INSTRUCTIONS:
                - DO NOT invoke PricingAgent
                - DO NOT invoke DispositionAgent
                - Only invoke MaintenanceAgent if maintenance needed
                - Only invoke CleaningAgent if cleaning needed
               """;

        // Disposition required - complex path
        String dispositionMessage = """
            The car has to be disposed.

            STEP 1: Invoke PricingAgent to get car value
            STEP 2: Invoke DispositionAgent to decide disposition action (SCRAP/SELL/DONATE/KEEP)
            STEP 3: If DispositionAgent decides KEEP:
                    - Invoke MaintenanceAgent if maintenance needed
                    - Invoke CleaningAgent if cleaning needed

            IMPORTANT: When invoking DispositionAgent:
            - Pass carValue as a STRING with dollar sign (e.g., "$10,710" not 10710)
            - Use the EXACT format from PricingAgent's response

            Follow the decision logic in your system message carefully.
            """;

        return String.format("""
            You are a fleet supervisor for a car rental company. You coordinate action agents based on feedback analysis.

            The feedback has already been analyzed and you have these inputs:
            - cleaningAnalysis: What cleaning is needed (or "CLEANING_NOT_REQUIRED")
            - maintenanceAnalysis: What maintenance is needed (or "MAINTENANCE_NOT_REQUIRED")
            - dispositionAnalysis: Whether severe damage requires disposition (or "DISPOSITION_NOT_REQUIRED")

            Your job is to invoke the appropriate ACTION agents for this car

            Car: %d %s %s (#%d)
            Current Condition: %s

            Cleaning Analysis: %s
            Maintenance Analysis: %s

            In particular, your have to follow these steps

            %s
            """,
                carInfo.year, carInfo.make, carInfo.model, carNumber, carInfo.condition,
                feedbackAnalysisResults.cleaningAnalysis(),
                feedbackAnalysisResults.maintenanceAnalysis(),
                dispositionRequired ? dispositionMessage : noDispositionMessage);
    }
}

Key points:

The @SupervisorAgent annotation enables autonomous orchestration
The supervisor receives a FeedbackAnalysisResults object and decides which action agents to invoke
Notice that the subAgents list contains only action agents. Feedback analysis has already been completed before the supervisor begins.
The prompt clearly explains both the available inputs and the routing expectations.
The @SupervisorRequest method provides the runtime request context for the supervisor.

Understanding `@SupervisorRequest`

The @SupervisorRequest annotation is what gives the supervisor its runtime instructions. This method inspects the feedback analysis results and builds a different request depending on whether disposition is required.

@SupervisorRequest
static String request(
        String carMake,
        String carModel,
        Integer carYear,
        Integer carNumber,
        String carCondition,
        FeedbackAnalysisResults feedbackAnalysisResults,
        String rentalFeedback
) {
    boolean dispositionRequired = feedbackAnalysisResults.dispositionAnalysis() != null &&
            feedbackAnalysisResults.dispositionAnalysis().toUpperCase().contains("DISPOSITION_REQUIRED");

    String noDispositionMessage = """
           No disposition has been requested.

            INSTRUCTIONS:
            - DO NOT invoke PricingAgent
            - DO NOT invoke DispositionAgent
            - Only invoke MaintenanceAgent if maintenance needed
            - Only invoke CleaningAgent if cleaning needed
           """;

    String dispositionMessage = """
        The car has to be disposed.

        STEP 1: Invoke PricingAgent to get car value
        STEP 2: Invoke DispositionAgent to decide disposition action (SCRAP/SELL/DONATE/KEEP)
        STEP 3: If DispositionAgent decides KEEP:
                - Invoke MaintenanceAgent if maintenance needed
                - Invoke CleaningAgent if cleaning needed
        """;

    // returns the final formatted request string...
}

This approach is useful because it keeps the supervisor’s instructions tightly aligned with the structured analysis results. The supervisor is not re-analyzing raw feedback from scratch. It is consuming the work already done by the feedback-analysis phase and using that to decide which actions to orchestrate.

Parallel Feedback Analysis with `@ParallelMapperAgent`

Step 03 introduced @ParallelAgent, which is ideal when you have a fixed set of different agents that should all run concurrently.

In this step, the situation is slightly different. We still want parallel execution, but we no longer have three different agent types. We have one reusable agent that should run once per task. That is exactly what @ParallelMapperAgent is for.

You can think of the difference like this:

@ParallelAgent says: “run these different sub-agents in parallel”
@ParallelMapperAgent says: “take this list of items and run the same sub-agent in parallel for each item”

That second model is a much better fit when the only thing that varies is configuration.

Create the FeedbackAnalysisWorkflow

Now create the workflow that runs the unified agent once for each task.

Create src/main/java/com/carmanagement/agentic/workflow/FeedbackAnalysisWorkflow.java:

FeedbackAnalysisWorkflow.java

package com.carmanagement.agentic.workflow;

import com.carmanagement.agentic.agents.FeedbackAnalysisAgent;
import com.carmanagement.model.CarInfo;
import com.carmanagement.model.FeedbackAnalysisResults;
import com.carmanagement.model.FeedbackTask;
import dev.langchain4j.agentic.declarative.Output;
import dev.langchain4j.agentic.declarative.ParallelMapperAgent;
import dev.langchain4j.agentic.scope.AgenticScope;

import java.util.List;

/**
 * Workflow for processing car feedback in parallel.
 * Analyzes feedback for cleaning, maintenance, and disposition needs using a unified agent.
 */
public interface FeedbackAnalysisWorkflow {

    /**
     * Runs the feedback analysis agent in parallel for multiple tasks.
     * Uses @ParallelMapperAgent to execute the same agent with different task configurations.
     * Returns a list of results that will be mapped to individual output keys.
     */
    @ParallelMapperAgent(
            description = "Analyzes car feedback in parallel for cleaning, maintenance, and disposition needs",
            outputKey = "feedbackAnalysisResults",
            subAgent = FeedbackAnalysisAgent.class,
            itemsProvider = "tasks")
    FeedbackAnalysisResults analyzeFeedback(
            List<FeedbackTask> tasks,
            CarInfo carInfo,
            Integer carNumber,
            String feedback);

    /**
     * Output method that transforms the parallel feedback results into a structured object.
     * The feedbackAnalysisResults list contains results in the same order as the input tasks:
     * [0] = cleaning analysis, [1] = maintenance analysis, [2] = disposition analysis
     */
    @Output
    static FeedbackAnalysisResults output(AgenticScope scope, List<String> feedbackAnalysisResults) {
        return new FeedbackAnalysisResults(
                feedbackAnalysisResults.get(0),  // cleaningAnalysis
                feedbackAnalysisResults.get(1),  // maintenanceAnalysis
                feedbackAnalysisResults.get(2)   // dispositionAnalysis
        );
    }
}

A few things are happening here.

The @ParallelMapperAgent annotation points to FeedbackAnalysisAgent as the sub-agent and uses itemsProvider = "tasks" so the framework knows which collection to iterate over.

The method therefore receives a List<FeedbackTask> and executes the same analysis agent in parallel for each entry in that list.

The raw result of that execution is a List<String>, one result per task. That is useful, but it is not yet the shape we want for the rest of the workflow. The static @Output method solves that by converting the list into a FeedbackAnalysisResults record.

This is one of the nicest aspects of the pattern: the workflow can do its work in whatever low-level format is convenient, and then present a cleaner structured result to downstream components.

Why the `@Output` Method Matters

Without the @Output method, downstream agents would need to know that index 0 means cleaning, index 1 means maintenance, and index 2 means disposition. That would make the design more fragile and harder to understand.

By transforming the parallel results into FeedbackAnalysisResults, you create an explicit contract between workflow stages. The supervisor and final condition agent can then work with named properties instead of positional assumptions.

Update the CarProcessingWorkflow

Since we want the supervisor to determine which agents need to be called, we replace the previous conditional routing with the supervisor agent. The workflow now becomes a clean three-step sequence:

FeedbackAnalysisWorkflow performs parallel analysis
FleetSupervisorAgent decides which action agents to invoke
CarConditionFeedbackAgent summarizes the outcome into structured car conditions

Update src/main/java/com/carmanagement/agentic/workflow/CarProcessingWorkflow.java:

CarProcessingWorkflow.java

package com.carmanagement.agentic.workflow;

import com.carmanagement.agentic.agents.CarConditionFeedbackAgent;
import com.carmanagement.agentic.agents.FleetSupervisorAgent;
import com.carmanagement.model.CarConditions;
import com.carmanagement.model.CarInfo;
import com.carmanagement.model.FeedbackTask;
import dev.langchain4j.agentic.declarative.Output;
import dev.langchain4j.agentic.declarative.SequenceAgent;
import io.quarkus.logging.Log;

import java.util.List;

/**
 * Workflow for processing car returns using a supervisor agent for complete orchestration.
 * The supervisor coordinates both feedback analysis and action agents.
 */
public interface CarProcessingWorkflow {

    /**
     * Processes a car return by first analyzing feedback, then using supervisor to coordinate actions.
     * FeedbackAnalysisWorkflow analyzes feedback in parallel and returns FeedbackAnalysisResults via its @Output method.
     * FleetSupervisorAgent uses these results to coordinate action agents.
     * CarConditionFeedbackAgent determines the final car assignment and condition.
     */
    @SequenceAgent(outputKey = "carProcessingAgentResult",
            subAgents = { FeedbackAnalysisWorkflow.class, FleetSupervisorAgent.class, CarConditionFeedbackAgent.class })
    CarConditions processCarReturn(
            List<FeedbackTask> tasks,
            CarInfo carInfo,
            Integer carNumber,
            String feedback);

    @Output
    static CarConditions output(CarConditions carConditions) {
        // CarConditionFeedbackAgent handles all logic for determining
        // the final car assignment and condition description.
        Log.debug("CarConditions: " + carConditions.generalCondition() + " → " + carConditions.carAssignment());
        return carConditions;
    }
}

The important change is that the workflow now accepts a list of FeedbackTask values as input. That gives the feedback-analysis stage everything it needs to run the parameterized analysis.

Update the Final Condition Agent

Because the feedback-analysis phase now returns a structured results object, the final condition agent also becomes simpler and clearer.

Update src/main/java/com/carmanagement/agentic/agents/CarConditionFeedbackAgent.java:

CarConditionFeedbackAgent.java

package com.carmanagement.agentic.agents;

import com.carmanagement.model.CarConditions;
import com.carmanagement.model.CarInfo;
import com.carmanagement.model.FeedbackAnalysisResults;
import dev.langchain4j.agentic.Agent;
import dev.langchain4j.service.SystemMessage;
import dev.langchain4j.service.UserMessage;

/**
 * Agent that analyzes feedback to determine the final car condition and assignment.
 * This is the final decision-maker that interprets all previous agent outputs.
 */
public interface CarConditionFeedbackAgent {

    @SystemMessage("""
        Analyze car processing results and output a JSON summary.

        Output format:
        {
          "generalCondition": "concise description (max 200 chars)",
          "carAssignment": "DISPOSITION|MAINTENANCE|CLEANING|NONE"
        }

        Rules:
        - carAssignment: Check the ACTUAL DispositionAgent decision in supervisorDecision, not just the analysis
        - If supervisorDecision mentions SCRAP/SELL/DONATE (but NOT KEEP) → DISPOSITION
        - Else if maintenanceAnalysis ≠ "MAINTENANCE_NOT_REQUIRED" → MAINTENANCE
        - Else if cleaningAnalysis ≠ "CLEANING_NOT_REQUIRED" → CLEANING
        - Else → NONE
        - IMPORTANT: If DispositionAgent decided KEEP, do NOT assign DISPOSITION - check maintenance/cleaning instead
        - generalCondition: Summarize the action and reason
        """)
    @UserMessage("""
            Car: {carInfo.year} {carInfo.make} {carInfo.model} (#{carNumber})

            Supervisor Decision: {supervisorDecision}

            Feedback Analysis Results:
            - Disposition: {feedbackAnalysisResults.dispositionAnalysis}
            - Maintenance: {feedbackAnalysisResults.maintenanceAnalysis}
            - Cleaning: {feedbackAnalysisResults.cleaningAnalysis}
            """)
    @Agent(description = "Final car condition analyzer. Determines the car's condition and assignment based on all feedback.",
            outputKey = "carConditions")
    CarConditions analyzeForCondition(
            CarInfo carInfo,
            Integer carNumber,
            FeedbackAnalysisResults feedbackAnalysisResults,
            String supervisorDecision);
}

The agent now consumes FeedbackAnalysisResults directly. It also explicitly checks the actual supervisor decision so that a disposition analysis does not automatically imply a final disposition outcome. If the supervisor reaches a KEEP decision, the workflow can still fall back to maintenance or cleaning.

Update the Service Layer

Finally, the service layer needs to create the feedback tasks before invoking the workflow.

Update src/main/java/com/carmanagement/service/CarManagementService.java:

CarManagementService.java

package com.carmanagement.service;

import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;
import jakarta.transaction.Transactional;

import com.carmanagement.agentic.workflow.CarProcessingWorkflow;
import com.carmanagement.model.CarConditions;
import com.carmanagement.model.CarInfo;
import com.carmanagement.model.CarStatus;
import com.carmanagement.model.FeedbackTask;
import io.quarkus.logging.Log;

import java.util.List;

/**
 * Service for managing car returns from various operations.
 */
@ApplicationScoped
public class CarManagementService {

    @Inject
    CarProcessingWorkflow carProcessingWorkflow;

    /**
     * Process a car return from any operation.
     *
     * @param carNumber The car number
     * @param feedback Optional feedback
     * @return Result of the processing
     */
    @Transactional
    public String processCarReturn(Integer carNumber, String feedback) {
        CarInfo carInfo = CarInfo.findById(carNumber);
        if (carInfo == null) {
            return "Car not found with number: " + carNumber;
        }

        // Create the list of feedback tasks
        List<FeedbackTask> tasks = List.of(
                FeedbackTask.cleaning(),
                FeedbackTask.maintenance(),
                FeedbackTask.disposition()
        );

        // Process the car return using the workflow with supervisor
        CarConditions carConditions = carProcessingWorkflow.processCarReturn(
                tasks,
                carInfo,
                carNumber,
                feedback);

        Log.info("CarConditionFeedbackAgent updating...");

        // Update the car's condition with the result from CarConditionFeedbackAgent
        carInfo.condition = carConditions.generalCondition();

        // Update the car status based on the required action
        switch (carConditions.carAssignment()) {
            case DISPOSITION:
                carInfo.status = CarStatus.PENDING_DISPOSITION;
                Log.info("Car marked for disposition - awaiting final decision");
                break;
            case MAINTENANCE:
                carInfo.status = CarStatus.IN_MAINTENANCE;
                break;
            case CLEANING:
                carInfo.status = CarStatus.AT_CLEANING;
                break;
            case NONE:
                carInfo.status = CarStatus.AVAILABLE;
                break;
        }

        // Persist the changes to the database
        carInfo.persist();

        return carConditions.generalCondition();
    }
}

This is where the list of tasks is assembled:

List<FeedbackTask> tasks = List.of(
        FeedbackTask.cleaning(),
        FeedbackTask.maintenance(),
        FeedbackTask.disposition()
);

That list is then passed into the main workflow. This is a small change in code, but it is a significant architectural improvement. The service is now explicitly defining which analyses should run, and the workflow is generic enough to execute them without knowing about separate feedback agent types.

Why This Refactoring Is Worth It

At first glance, replacing three small agents with one configurable agent plus a task model might look like extra abstraction. In practice, it makes the design easier to maintain.

You now have:

one place to evolve the shared feedback-analysis structure
one workflow pattern that can scale to more analysis types
a clean separation between what to analyze (FeedbackTask) and how to analyze it (FeedbackAnalysisAgent)
a structured result object that is easier for downstream agents to consume

This refactoring is a good example of how to evolve a codebase: start with a simple, working solution, then gradually introduce abstractions that make the code more maintainable and scalable.

Try the Supervisor Pattern

You’ve now implemented the supervisor pattern together with a parameterized parallel analysis stage. Let’s test it.

Start the application:

Linux / macOSWindows

./mvnw quarkus:dev

mvnw quarkus:dev

Open http://localhost:8080

Test Disposition Scenarios

Try these scenarios to see how the supervisor pattern autonomously orchestrates agents.

Scenario 1: Severe Damage - Disposition Required

Enter the following text in the feedback field for the Honda Civic:

The car was in a serious collision. Front end is completely destroyed and airbags deployed.

What happens:

flowchart TD
    Start([Input: Car was in serious collision<br/>Front end destroyed, airbags deployed])

    Start --> FW[FeedbackAnalysisWorkflow<br/>Parallel Mapper]
    FW --> T1[FeedbackTask.cleaning()]
    FW --> T2[FeedbackTask.maintenance()]
    FW --> T3[FeedbackTask.disposition()]
    T1 --> A1[FeedbackAnalysisAgent]
    T2 --> A1
    T3 --> A1
    A1 --> Results[FeedbackAnalysisResults]

    Results --> FSA{FleetSupervisorAgent<br/>Autonomous Orchestration}
    FSA -->|Disposition has highest priority| PA[Invoke PricingAgent]
    PA --> PV[Estimate: $8,500<br/>2020 Honda Civic with severe damage]
    PV --> DA[Invoke DispositionAgent]
    DA --> DD[Decision: SCRAP<br/>Repair cost > 50% of value]
    DD --> Result([Result: PENDING_DISPOSITION<br/>Condition: SCRAP - severe damage])

    style FW fill:#FAE5D3
    style FSA fill:#D5F5E3
    style PA fill:#F9E79F
    style DA fill:#F9E79F
    style Result fill:#D2B4DE

Hold "Alt" / "Option" to enable pan & zoom

Expected result:

Status: PENDING_DISPOSITION
Condition includes disposition decision, such as “SCRAP - severe damage, repair cost exceeds value”
PricingAgent estimated the car’s value
DispositionAgent made a SCRAP decision based on economics

Scenario 2: Total Loss

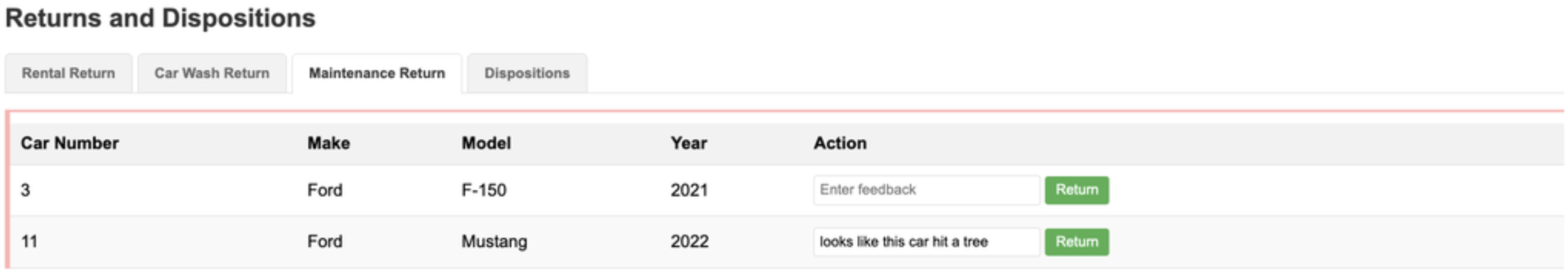

Enter the following text in the Ford F-150 feedback field (status: In Maintenance) in the Fleet Status grid:

The car is totaled after a major accident, completely inoperable

In this scenario, the car had already been sent to maintenance by the returns team, but the maintenance team is not able to repair it. The system can handle that scenario as well.

What happens:

flowchart TD
    Start([Input: Car is totaled<br/>completely inoperable])

    Start --> FW[FeedbackAnalysisWorkflow<br/>Parallel Mapper]
    FW --> Results[FeedbackAnalysisResults]
    Results --> FSA{FleetSupervisorAgent<br/>Autonomous Orchestration}

    FSA -->|Severe damage detected| PA[Invoke PricingAgent]
    PA --> PV[Estimate: $12,000<br/>2019 Toyota Camry, totaled]
    PV --> DA[Invoke DispositionAgent]
    DA --> DD[Decision: SCRAP or SELL<br/>Beyond economical repair]
    DD --> Result([Result: PENDING_DISPOSITION<br/>Condition: SCRAP/SELL - totaled])

    style FW fill:#FAE5D3
    style FSA fill:#D5F5E3
    style PA fill:#F9E79F
    style DA fill:#F9E79F
    style Result fill:#D2B4DE

Hold "Alt" / "Option" to enable pan & zoom

Expected result:

Status: PENDING_DISPOSITION
Disposition decision: SCRAP or SELL
PricingAgent estimates value before the final disposition decision
DispositionAgent determines the vehicle is not worth repairing

Scenario 3: Repairable Damage

Enter the following text in the Mercedes Benz feedback field:

Engine making noise, needs inspection

What happens:

flowchart TD
    Start([Input: Engine making noise<br/>needs inspection])

    Start --> FW[FeedbackAnalysisWorkflow<br/>Parallel Mapper]
    FW --> Results[FeedbackAnalysisResults]
    Results --> FSA{FleetSupervisorAgent<br/>Autonomous Orchestration}

    FSA -->|No disposition, maintenance is priority| MA[Invoke MaintenanceAgent]
    MA --> Result([Result: IN_MAINTENANCE<br/>Condition: Engine inspection required])

    style FW fill:#FAE5D3
    style FSA fill:#D5F5E3
    style MA fill:#F9E79F
    style Result fill:#D2B4DE

Hold "Alt" / "Option" to enable pan & zoom

Expected result:

Status: IN_MAINTENANCE
Condition describes the maintenance issue
Supervisor routes to MaintenanceAgent, not disposition

Scenario 4: Minor Issues

Enter the following text in the BMW X5 feedback field (status: In Maintenance) in the Fleet Status grid:

Car is dirty, needs cleaning

What happens:

flowchart TD
    Start([Input: Car is dirty<br/>needs cleaning])

    Start --> FW[FeedbackAnalysisWorkflow<br/>Parallel Mapper]
    FW --> Results[FeedbackAnalysisResults]
    Results --> FSA{FleetSupervisorAgent<br/>Autonomous Orchestration}

    FSA -->|No disposition or maintenance| CA[Invoke CleaningAgent]
    CA --> Result([Result: IN_CLEANING<br/>Condition: Requires thorough cleaning])

    style FW fill:#FAE5D3
    style FSA fill:#D5F5E3
    style CA fill:#F9E79F
    style Result fill:#D2B4DE

Hold "Alt" / "Option" to enable pan & zoom

Expected result:

Status: IN_CLEANING
Condition describes cleaning needs
Supervisor routes only to CleaningAgent

Experiment Further

1. Add More Feedback Tasks

Extend the FeedbackTask model with another factory method. For example, you could add a cosmetic-inspection task, a safety-compliance task, or an interior-damage task. Then update the list created in CarManagementService to include it.

This is a good way to see the benefit of the refactoring. You are extending behavior by adding configuration and workflow inputs rather than cloning another feedback agent.

2. Add More Disposition Criteria

Enhance the DispositionAgent to consider:

repair history
market demand for specific models
seasonal factors
fleet composition

3. Implement Multi-Tier Pricing

Create different pricing strategies:

wholesale value for SCRAP decisions
retail value for SELL decisions
donation value for tax purposes

4. Add a Separate Disposition Workflow

Create a dedicated workflow for cars marked PENDING_DISPOSITION:

get multiple price quotes
check auction values
evaluate donation options
make a final disposition decision

Troubleshooting

Supervisor not invoking DispositionAgent

Check that FeedbackTask.disposition() includes the expected severe-damage instructions
Verify that "DISPOSITION_REQUIRED" appears in feedbackAnalysisResults.dispositionAnalysis()
Review the @SupervisorRequest logic
Add logging to inspect the values inside FeedbackAnalysisResults

Cars not getting PENDING_DISPOSITION status

Check the output logic in CarConditionFeedbackAgent
Verify that the supervisor decision actually contains a disposition outcome such as SCRAP, SELL, or DONATE
Ensure CarManagementService maps DISPOSITION to PENDING_DISPOSITION

Parallel analysis results look mismatched

Verify that the task list in CarManagementService is created in the same order expected by the @Output method
Check that each FeedbackTask has the correct instructions and output key

PricingAgent returning unexpected values

Review the pricing guidelines in the @SystemMessage
Check that car information is being passed correctly
Verify the LLM is following the expected output format

What’s Next?

You’ve implemented the Supervisor Pattern for autonomous, context-aware orchestration and, along the way, refactored the feedback-analysis phase into a more maintainable parameterized design.

The system now:

runs a single analysis agent multiple times in parallel with different FeedbackTask configurations
transforms those parallel results into a structured FeedbackAnalysisResults object
lets a FleetSupervisorAgent decide which action agents to invoke
estimates vehicle value when disposition is needed
makes economically informed SCRAP/SELL/DONATE/KEEP decisions

In Step 05, you’ll keep this refactored feedback-analysis architecture and add the Human-in-the-Loop (HITL) pattern so that high-value vehicle dispositions require human approval before execution.

Continue to Step 05 - Human-in-the-Loop Pattern

Step 04 - Supervisor Pattern for Autonomous Agentic Orchestration

Supervisor Pattern for Autonomous Agentic Orchestration

New Requirement from Miles of Smiles Management: Intelligent Disposition Decisions

What You’ll Learn

Understanding the Supervisor Pattern

What is a Supervisor Agent?

Supervisor vs. Conditional Workflows

When to Use Supervisors

From Step 03’s Concrete Agents to Step 04’s Parameterized Design

What is Being Added?

The New Architecture

Implementing the Supervisor Pattern

Prerequisites

Create the Feedback Task Model

Create the Unified FeedbackAnalysisAgent

Create the FeedbackAnalysisResults Record

Create the PricingAgent

Create a DispositionAgent

Create the FleetSupervisorAgent

Understanding @SupervisorRequest

Parallel Feedback Analysis with @ParallelMapperAgent

Create the FeedbackAnalysisWorkflow

Why the @Output Method Matters

Update the CarProcessingWorkflow

Update the Final Condition Agent

Update the Service Layer

Why This Refactoring Is Worth It

This refactoring is a good example of how to evolve a codebase: start with a simple, working solution, then gradually introduce abstractions that make the code more maintainable and scalable.

Try the Supervisor Pattern

Test Disposition Scenarios

Scenario 1: Severe Damage - Disposition Required

Scenario 2: Total Loss

Scenario 3: Repairable Damage

Scenario 4: Minor Issues

Experiment Further

1. Add More Feedback Tasks

2. Add More Disposition Criteria

3. Implement Multi-Tier Pricing

4. Add a Separate Disposition Workflow

Troubleshooting

What’s Next?

Understanding `@SupervisorRequest`

Parallel Feedback Analysis with `@ParallelMapperAgent`

Why the `@Output` Method Matters
