Step 01 - Implementing AI Agents

Welcome to Section 2: Agentic Systems

Congratulations on completing Section 1! You’ve learned how to build AI-infused applications with chatbots, RAG patterns, and function calling.

In Section 2, we’re shifting gears to explore agentic systems — autonomous AI agents that can work together to solve complex, multi-step problems. Instead of a chatbot responding to user queries, you’ll build agents that can make decisions, use tools, and collaborate in workflows.

What You’ll Learn

In this step, you will:

Understand the difference between AI Services (Section 1) and AI Agents (Section 2)
Build your first autonomous agent using the quarkus-langchain4j-agentic module
Learn how agents use tools (function calling) to take actions
See agents make decisions based on contextual information

A New Scenario: Car Management System

The Miles of Smiles car rental company needs help managing their fleet. Here’s the business process:

Rental Returns: When customers return cars, the rental team records feedback about the car’s condition.
Car Wash Requests: Based on the feedback, the system should automatically decide if the car needs cleaning.
Car Wash Returns: After cleaning, the car wash team provides their own feedback and returns the car.
Fleet Availability: Clean cars with no issues return to the available pool for rental.

Your job is to build an AI agent that can analyze feedback and intelligently decide whether to request a car wash.

AI Services vs. AI Agents

Before diving into the code, let’s clarify the key differences:

Feature	AI Services (Section 1)	AI Agents (Section 2)
Purpose	Answer user questions	Perform autonomous tasks
Interaction	Reactive (responds to prompts)	Reactive and Proactive (takes actions)
Tool Usage	Can call tools when needed	Can call tools to accomplish goals
Workflows	Single-agent interactions	Multi-agent collaboration (workflow or supervisor-based)
Annotation	Methods use `@SystemMessage` + `@UserMessage`	One method per interface uses `@Agent`
Use Cases	Chatbots, Q&A, content generation	Automation, decision-making, orchestration

In this section, you’ll see how agents extend the capabilities you learned in Section 1 to build sophisticated, autonomous systems.

Prerequisites

Before starting, ensure you have:

Completed Section 1 (or you are familiar with Quarkus LangChain4j basics)
JDK 21+ installed
OpenAI API key set as OPENAI_API_KEY environment variable
A container runtime (Docker/Podman) for running a PostgreSQL Dev Service

Running the Application

Navigate to the section-2/step-01 directory and start the application:

Linux / macOSWindows

cd section-2/step-01
./mvnw quarkus:dev

cd section-2\step-01
mvnw quarkus:dev

Once started, open your browser to http://localhost:8080.

Understanding the UI

The application has two main sections:

Fleet Status (top): Shows all cars in the Miles of Smiles fleet with their current status
Returns (bottom): Displays cars that are currently rented or at the car wash

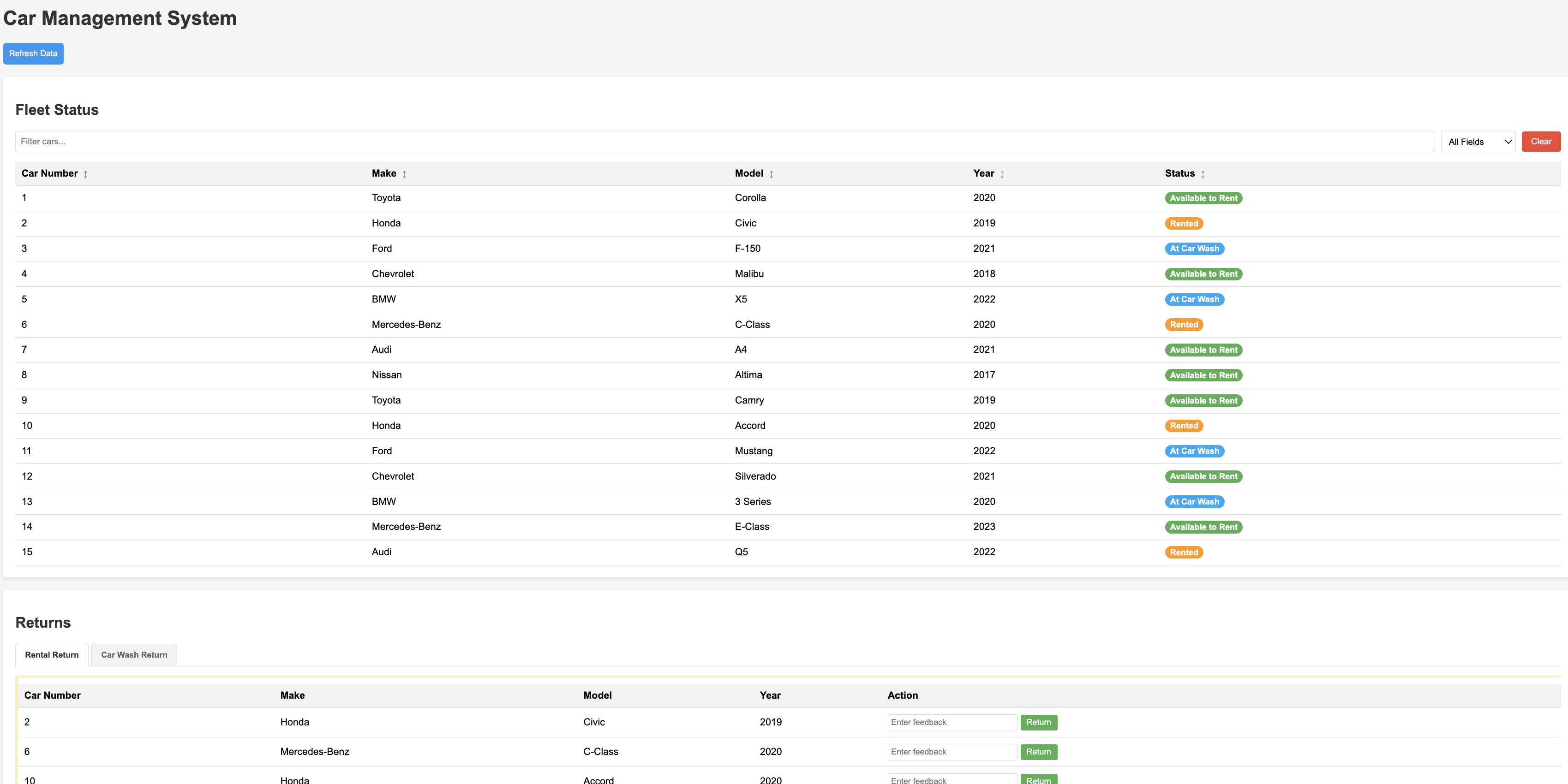

Agentic App UI

Try It Out

Let’s see the agent in action!

Test 1: Car Needs Cleaning

Act as a rental team member processing a car return. In the Returns > Rental Return section, select a car and enter this feedback:

Car has dog hair all over the back seat

Click the Return button.

What happens?

The agent analyzes the feedback
Recognizes the car needs cleaning
Calls the CarWashTool to request interior cleaning
Updates the car’s status to AT_CAR_WASH

Check your terminal logs (you may need to scroll up). You should see output like:

🚗 CarWashTool result: Car wash requested for Mercedes-Benz C-Class (2020), Car #6:
- Interior cleaning
Additional notes: Interior cleaning required due to dog hair in back seat.

Test 2: Car Is Clean

Now try returning a car that’s already clean:

Car looks good

What happens?

The agent analyzes the feedback
Determines no cleaning is needed
Returns CARWASH_NOT_REQUIRED (no tool call made)
Updates the car’s status to AVAILABLE

In your logs, you’ll see the agent’s response contains:

"content":"CARWASH_NOT_REQUIRED"

Notice how the agent made a decision without calling the car wash tool. This demonstrates reasoning!

Building Agents with Quarkus LangChain4j

The langchain4j-agentic module introduces the ability to create AI Agents. This module is available in Quarkus using the quarkus-langchain4j-agentic module. If you open the pom.xml file from the project, you will see this dependency:

<dependency>
    <groupId>io.quarkiverse.langchain4j</groupId>
    <artifactId>quarkus-langchain4j-agentic</artifactId>
</dependency>

Key Concepts

Agents share similarities with AI Services from Section 1:

Declared as interfaces (implementation generated automatically)
Use @SystemMessage to define the agent’s role and behavior
Use @UserMessage to provide request-specific context
Can be assigned tools to perform actions
Support both programmatic and declarative (annotation-based) definitions, even if in Quarkus, we recommend the declarative approach

Key Differences

Only one method per interface can be annotated with @Agent - this is the agent entry point
Designed to be composed with for workflows or be invoked by a supervisor — agents can be composed together (more on this in Step 02)
Focus on autonomous actions rather than conversational responses

Understanding the Application Architecture

App Blueprint

The application consists of four main components:

CarManagementResource: REST API endpoints
CarManagementService: Business logic and agent orchestration
CarWashAgent: AI agent that decides if cleaning is needed
CarWashTool: Tool that requests car wash services

Let’s explore each component.

Component 1: REST API Endpoints

The CarManagementResource provides REST APIs to handle car returns:

CarManagementResource.java

/**
 * REST resource for car management operations.
 */
@Path("/car-management")
public class CarManagementResource {

    @Inject
    CarManagementService carManagementService;

    /**
     * Process a car return from rental.
     *
     * @param carNumber The car number
     * @param rentalFeedback Optional rental feedback
     * @return Result of the processing
     */
    @POST
    @Path("/rental-return/{carNumber}")
    public Response processRentalReturn(Long carNumber, @RestQuery String rentalFeedback) {

        try {
            String result = carManagementService.processCarReturn(carNumber, rentalFeedback, "");
            return Response.ok(result).build();
        } catch (Exception e) {
            e.printStackTrace();
            return Response.status(Response.Status.INTERNAL_SERVER_ERROR)
                    .entity("Error processing rental return: " + e.getMessage())
                    .build();
        }
    }

    /**
     * Process a car return from car wash.
     *
     * @param carNumber The car number
     * @param carWashFeedback Optional car wash feedback
     * @return Result of the processing
     */
    @POST
    @Path("/car-wash-return/{carNumber}")
    public Response processCarWashReturn(Long carNumber, @RestQuery String carWashFeedback) {

        try {
            String result = carManagementService.processCarReturn(carNumber, "", carWashFeedback);
            return Response.ok(result).build();
        } catch (Exception e) {
            Log.error(e.getMessage(), e);
            return Response.status(Response.Status.INTERNAL_SERVER_ERROR)
                    .entity("Error processing car wash return: " + e.getMessage())
                    .build();
        }
    }
}

Key Points:

The processRentalReturn method (endpoint /car-management/rental-return/{carNumber}): Accepts feedback from the rental team
The processCarWashReturn method (endpoint /car-management/car-wash-return/{carNumber}): Accepts feedback from the car wash team
Both endpoints delegate to CarManagementService.processCarReturn

Component 2: Business Logic & Agent Invocation

The CarManagementService orchestrates the car return process:

CarManagementService.java

package com.carmanagement.service;

import com.carmanagement.agentic.agents.CarWashAgent;
import com.carmanagement.model.CarInfo;
import com.carmanagement.model.CarStatus;

import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;
import jakarta.transaction.Transactional;

/**
 * Service for managing car returns from various operations.
 */
@ApplicationScoped
public class CarManagementService {

    @Inject
    CarWashAgent carWashAgent;

    // --8<-- [start:processCarReturn]
    /**
     * Process a car return from any operation.
     *
     * @param carNumber The car number
     * @param rentalFeedback Optional rental feedback
     * @param carWashFeedback Optional car wash feedback
     * @return Result of the processing
     */
    @Transactional
    public String processCarReturn(Long carNumber, String rentalFeedback, String carWashFeedback) {
        CarInfo carInfo = CarInfo.findById(carNumber);
        if (carInfo == null) {
            return "Car not found with number: " + carNumber;
        }

        // Process the car result
        String result = carWashAgent.processCarWash(
                carInfo.make,
                carInfo.model,
                carInfo.year,
                carNumber,
                rentalFeedback != null ? rentalFeedback : "",
                carWashFeedback != null ? carWashFeedback : "");

        if (result.toUpperCase().contains("CARWASH_NOT_REQUIRED")) {
            carInfo.status = CarStatus.AVAILABLE;
            carInfo.persist();
        }

        return result;
    }
    // --8<-- [end:processCarReturn]
}

Key Points:

The CarWashAgent field is injected as a CDI bean
In the processCarReturn method, the agent is invoked with car details and feedback. The response is checked for CARWASH_NOT_REQUIRED:
- If found → Car marked as AVAILABLE
- If not found → Car stays AT_CAR_WASH (tool was called)

This simple pattern allows you to integrate autonomous decision-making into your business logic!

Component 3: The CarWashAgent

Here’s where the magic happens — the AI agent definition:

CarWashAgent.java

package com.carmanagement.agentic.agents;

import com.carmanagement.agentic.tools.CarWashTool;
import dev.langchain4j.agentic.Agent;
import dev.langchain4j.service.SystemMessage;
import dev.langchain4j.service.UserMessage;
import io.quarkiverse.langchain4j.ToolBox;

// --8<-- [start:carWashAgent]
/**
 * Agent that determines what car wash services to request.
 */
public interface CarWashAgent {

    @SystemMessage("""
        You handle intake for the car wash department of a car rental company.
        It is your job to submit a request to the provided requestCarWash function to take action based on the provided feedback.
        Be specific about what services are needed.
        If no car wash is needed based on the feedback, respond with "CARWASH_NOT_REQUIRED".
        """)
    @UserMessage("""
        Car Information:
        Make: {carMake}
        Model: {carModel}
        Year: {carYear}
        Car Number: {carNumber}

        Feedback:
        Rental Feedback: {rentalFeedback}
        Car Wash Feedback: {carWashFeedback}
        """)
    @Agent("Car wash specialist. Determines what car wash services are needed.")
    @ToolBox(CarWashTool.class)
    String processCarWash(
            String carMake,
            String carModel,
            Integer carYear,
            Long carNumber,
            String rentalFeedback,
            String carWashFeedback);
}
// --8<-- [end:carWashAgent]

Let’s break it down:

`@SystemMessage`

Defines the agent’s role and decision-making logic:

Acts as the intake specialist for the car wash department
Should call the requestCarWash function in the CarWashTool when cleaning is needed
Should be specific about which services to request
Should return CARWASH_NOT_REQUIRED if no cleaning is needed

Pro Tip: Clear Instructions Matter

The system message is critical! It tells the agent:

WHO it is (car wash intake specialist)
WHAT to do (submit car wash requests)
WHEN to act (based on feedback)
HOW to respond (specific services or CARWASH_NOT_REQUIRED)

`@UserMessage`

Provides context for each request using template variables:

Car details: {carMake}, {carModel}, {carYear}, {carNumber}
Feedback sources: {rentalFeedback}, {carWashFeedback}

These variables are automatically populated from the method parameters.

`@Agent`

Marks this as an agent method — only one per interface.

Provides a description: “Car wash specialist. Determines what car wash services are needed.”
This description can be used by other agents or systems to understand this agent’s purpose

`@ToolBox`

Assigns the CarWashTool to this agent:

The agent can call methods in this tool to perform actions
The LLM decides when and how to use the tool based on the task (function calling has been covered in the Section 1 of the workshop)

Method Signature

Defines the inputs and output:

Inputs: All the context the agent needs to make decisions
Output: String — the agent’s response (either tool result or CARWASH_NOT_REQUIRED)

No Implementation Required

Notice there’s no method body! LangChain4j automatically generates the implementation:

Receives the inputs
Sends the system + user messages to the LLM
If the LLM wants to call the tool, it does so
Returns the final response

Component 4: The CarWashTool

Tools enable agents to take actions in the real world:

CarWashTool.java

/**
 * Tool for requesting car wash operations.
 */
@Dependent
public class CarWashTool {

    /**
     * Requests a car wash based on the provided parameters.
     *
     * @param carNumber The car number
     * @param carMake The car make
     * @param carModel The car model
     * @param carYear The car year
     * @param exteriorWash Whether to request exterior wash
     * @param interiorCleaning Whether to request interior cleaning
     * @param detailing Whether to request detailing
     * @param waxing Whether to request waxing
     * @param requestText The car wash request text
     * @return A summary of the car wash request
     */
    @Tool("Requests a car wash with the specified options")
    @Transactional
    public String requestCarWash(
            Long carNumber,
            String carMake,
            String carModel,
            Integer carYear,
            boolean exteriorWash,
            boolean interiorCleaning,
            boolean detailing,
            boolean waxing,
            String requestText) {

        // In a real implementation, this would make an API call to a car wash service
        // or update a database with the car wash request

        // Update car status to AT_CAR_WASH
        CarInfo carInfo = CarInfo.findById(carNumber);
        if (carInfo != null) {
            carInfo.status = CarStatus.AT_CAR_WASH;
            carInfo.persist();
        }

        String result = generateCarWashSummary(carNumber, carMake, carModel, carYear,
                                              exteriorWash, interiorCleaning, detailing,
                                              waxing, requestText);
        System.out.println("\uD83D\uDE97 CarWashTool result: " + result);
        return result;
    }

Key Points:

@Dependent scope is required (see explanation below)
@Tool annotation exposes this method to agents
- The description helps the LLM understand when to use this tool
- Parameters define what information the agent must provide
The method updates the car status to AT_CAR_WASH, if the carInfo is not null
The method returns a summary of the request (and prints a log messages)

Understanding Tool Execution Flow

Here is the sequence of actions happening when the agent is invoked:

Agent receives car return feedback (entered by the user)
LLM analyzes the feedback
LLM decides to call requestCarWash (or not, depending on the feedback)
If called, LLM determines which parameters to use:
- Should interiorCleaning be true?
- Should exteriorWash be true?
- What requestText should be included?
Tool executes and returns a result
Agent receives the result and can respond

Why do we use @Dependent scope for the Tool?

When a tool is added to an agent, LangChain4j introspects the tool object to find methods with @Tool annotations.

The problem with other scopes: CDI creates proxies for beans with scopes like @ApplicationScoped or @SessionScoped. These proxy objects don’t preserve the @Tool annotations, so LangChain4j can’t detect them.

The solution: Use @Dependent scope, which doesn’t create proxies, allowing LangChain4j to see the annotations directly.

Alternative: If you need other CDI scopes, you can use a ToolProvider to manually register tools (not covered in this workshop).

How It All Works Together

Let’s trace through a complete example:

Scenario: Dog Hair in Back Seat

sequenceDiagram
    participant User
    participant REST as CarManagementResource
    participant Service as CarManagementService
    participant Agent as CarWashAgent
    participant LLM as OpenAI LLM
    participant Tool as CarWashTool

    User->>REST: POST /rental-return/6<br/>feedback: "Dog hair in back seat"
    REST->>Service: processCarReturn(6, "Dog hair...", "")
    Service->>Agent: processCarWash(...)
    Agent->>LLM: System: You handle car wash intake...<br/>User: Car #6, feedback: "Dog hair..."
    LLM->>LLM: Analyze feedback<br/>Decision: Needs interior cleaning
    LLM->>Tool: requestCarWash(<br/>  carNumber: 6,<br/>  interiorCleaning: true,<br/>  requestText: "Dog hair removal"<br/>)
    Tool->>Tool: Update car status to AT_CAR_WASH
    Tool-->>LLM: "Car wash requested: Interior cleaning..."
    LLM-->>Agent: "Car wash requested: Interior cleaning..."
    Agent-->>Service: "Car wash requested: Interior cleaning..."
    Service->>Service: Check if contains "CARWASH_NOT_REQUIRED"<br/>No → Keep status AT_CAR_WASH
    Service-->>REST: Result message
    REST-->>User: 200 OK

Scenario: Car Looks Good

sequenceDiagram
    participant User
    participant REST as CarManagementResource
    participant Service as CarManagementService
    participant Agent as CarWashAgent
    participant LLM as OpenAI LLM

    User->>REST: POST /rental-return/3<br/>feedback: "Car looks good"
    REST->>Service: processCarReturn(3, "Car looks good", "")
    Service->>Agent: processCarWash(...)
    Agent->>LLM: System: You handle car wash intake...<br/>User: Car #3, feedback: "Car looks good"
    LLM->>LLM: Analyze feedback<br/>Decision: No cleaning needed
    LLM-->>Agent: "CARWASH_NOT_REQUIRED"
    Agent-->>Service: "CARWASH_NOT_REQUIRED"
    Service->>Service: Check if contains "CARWASH_NOT_REQUIRED"<br/>Yes → Set status to AVAILABLE
    Service-->>REST: Result message
    REST-->>User: 200 OK

Key Takeaways

Agents are autonomous: They make decisions and take actions based on context. Tools enable actions: Agents use tools to interact with systems (databases, APIs, etc.) Clear prompts matter: The @SystemMessage guides the agent’s decision-making Type-safe interfaces: No manual API calls — just define interfaces and let Quarkus LangChain4j handle the rest CDI integration: Agents and tools are managed beans that integrate seamlessly with Quarkus

Experiment Further

Try these experiments to deepen your understanding:

1. Test Edge Cases

Try different feedback scenarios:

The trunk smells like fish

Minor scratch on the bumper

Spotless condition

What does the agent decide for each? Does it call the car wash tool?

2. Modify the System Message

Edit CarWashAgent.java and change the system message. For example:

@SystemMessage("""
    You are a very picky car wash intake specialist.
    Request a full detail (exterior, interior, waxing, detailing)
    unless the car is absolutely perfect.
    If perfect, respond with "CARWASH_NOT_REQUIRED".
    """)

How does this change the agent’s behavior?

3. Add More Tool Parameters

Edit CarWashTool.java to add a tireCleaning parameter. Does the agent automatically learn to use it?

Troubleshooting

Error: OPENAI_API_KEY not set

Make sure you’ve exported the environment variable:

export OPENAI_API_KEY=sk-your-key-here

Then restart the application.

Tool methods not being called

Verify the tool uses @Dependent scope
Check that the @Tool annotation is present
Ensure the tool is properly referenced in @ToolBox

Agent always/never calls the tool

Review your @SystemMessage — is it clear about when to use the tool?
Try adding more explicit instructions
Consider providing examples in the system message

What’s Next?

In this step, you built a single autonomous agent that makes decisions and uses tools.

In Step 02, you’ll learn how to compose multiple agents into workflows — where agents collaborate to solve complex problems together!

Continue to Step 02 - Composing Simple Agent Workflows

Step 01 - Implementing AI Agents

Welcome to Section 2: Agentic Systems

What You’ll Learn

A New Scenario: Car Management System

AI Services vs. AI Agents

Prerequisites

Running the Application

Understanding the UI

Try It Out

Test 1: Car Needs Cleaning

Test 2: Car Is Clean

Building Agents with Quarkus LangChain4j

Key Concepts

Key Differences

Understanding the Application Architecture

Component 1: REST API Endpoints

Component 2: Business Logic & Agent Invocation

Component 3: The CarWashAgent

@SystemMessage

@UserMessage

@Agent

@ToolBox

Method Signature

Component 4: The CarWashTool

Understanding Tool Execution Flow

How It All Works Together

Scenario: Dog Hair in Back Seat

Scenario: Car Looks Good

Key Takeaways

Experiment Further

1. Test Edge Cases

2. Modify the System Message

3. Add More Tool Parameters

Troubleshooting

What’s Next?

`@SystemMessage`

`@UserMessage`

`@Agent`

`@ToolBox`
